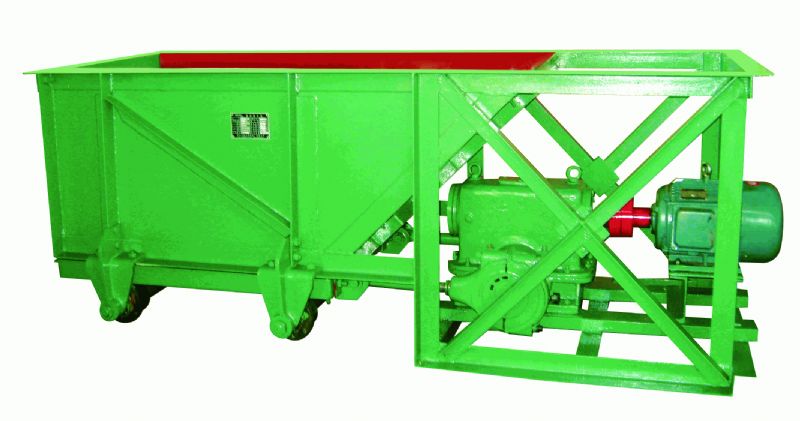

槽式給礦機
|
規格型號 |
進出口尺寸 |
擺動次數(次/min) |
曲柄行程 |
最大給料粒度 |
生產能力 |
電動機Motor |
重量 |
|||
|
Standard model |
Inlet size (mm) |
Swinging frequency (times/min) |
寬Width (mm) |
高Height (mm) |
Crank travel (mm) |
Max. feeding size (mm) |
Production capacity (t/h) |
型號Model |
功率Power(kW) |
Weight (kg) |
|
400×400 |
400×400 |
18.2 |
400 |
400 |
12 |
100 |
3-35 |
Y90L-6-B3 |
1.1 |
535 |
|
600×500 |
600×500 |
38.9 |
600 |
500 |
10-50 |
200 |
10-50 |
Y112M-4 |
4 |
1054 |
|
980×1240 |
980×1240 |
23.7 |
900 |
800 |
20-50 |
350 |
36-90 |
Y160M-6 |
7.5 |
1676 |
|
1060×1600 |
1060×1600 |
23.7 |
980 |
910 |
90-150 |
480 |
290 |
Y160M-6 |
7.5 |
2090 |
